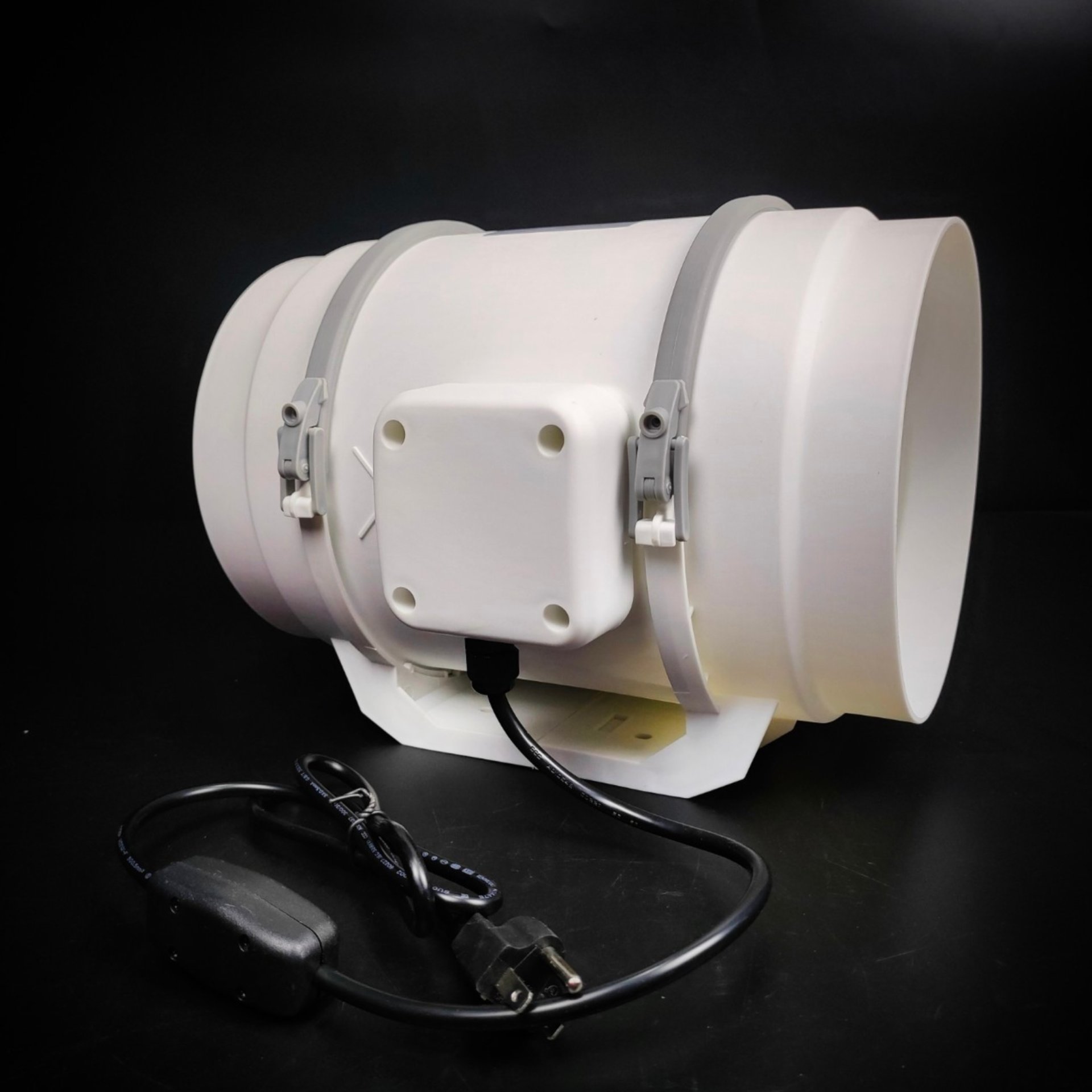

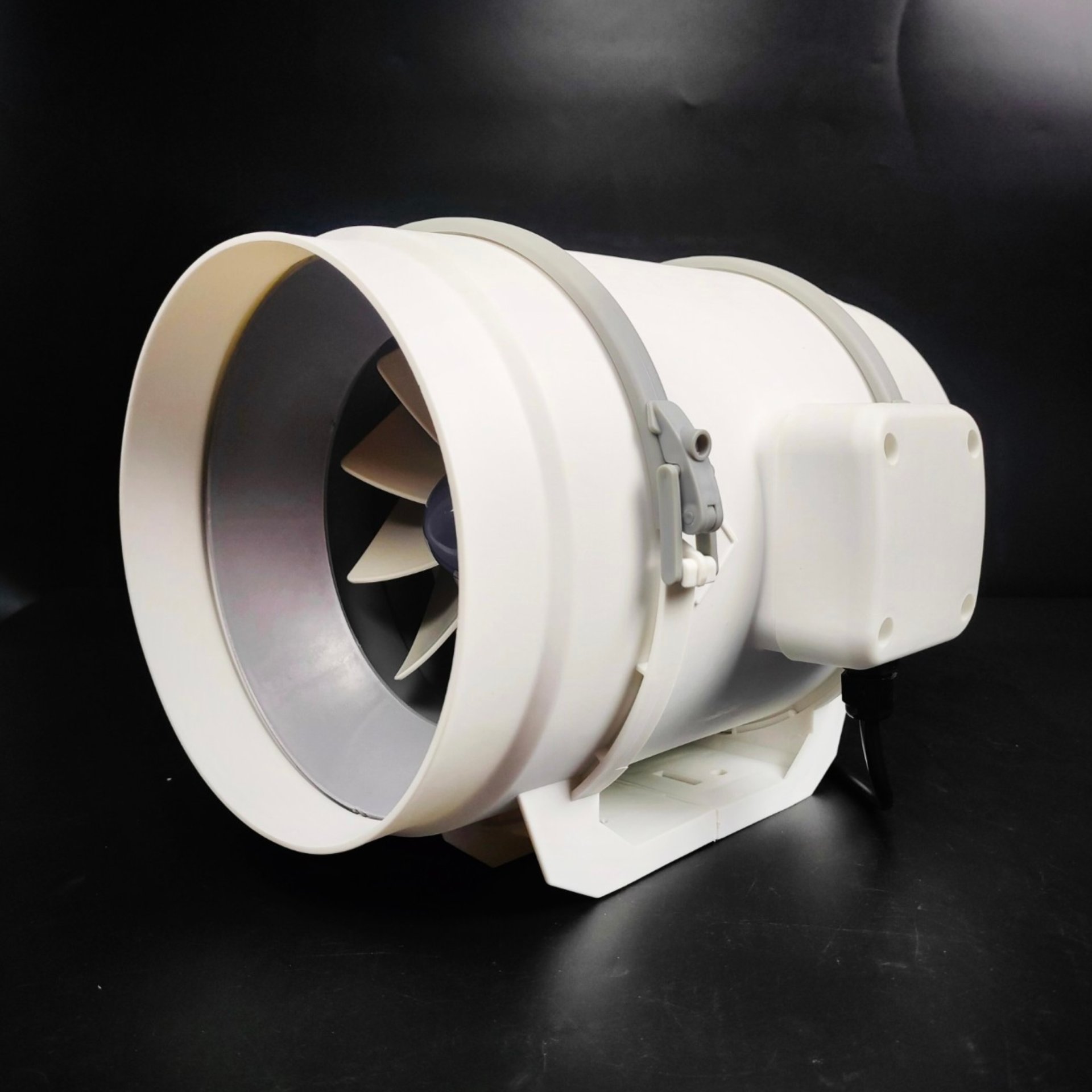

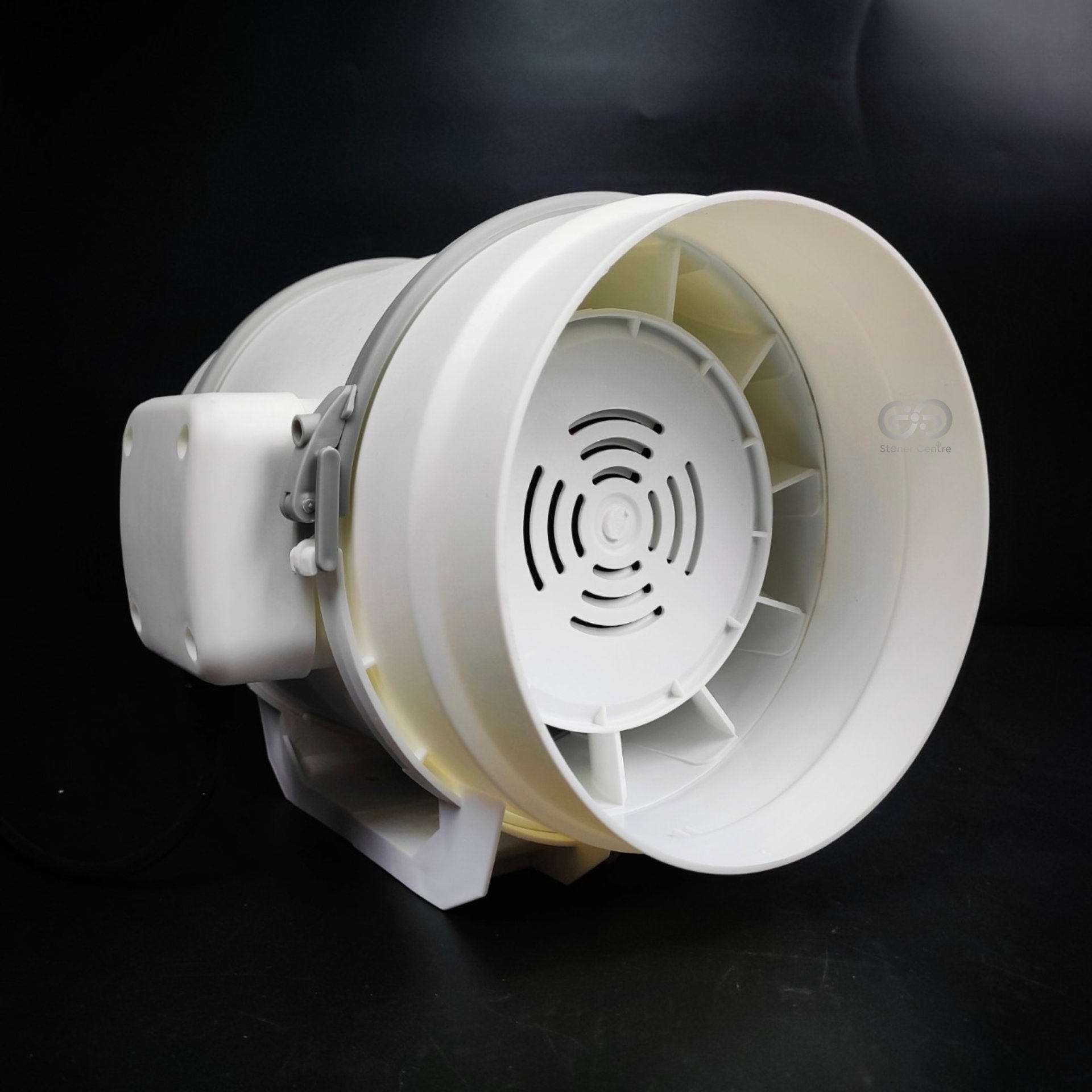

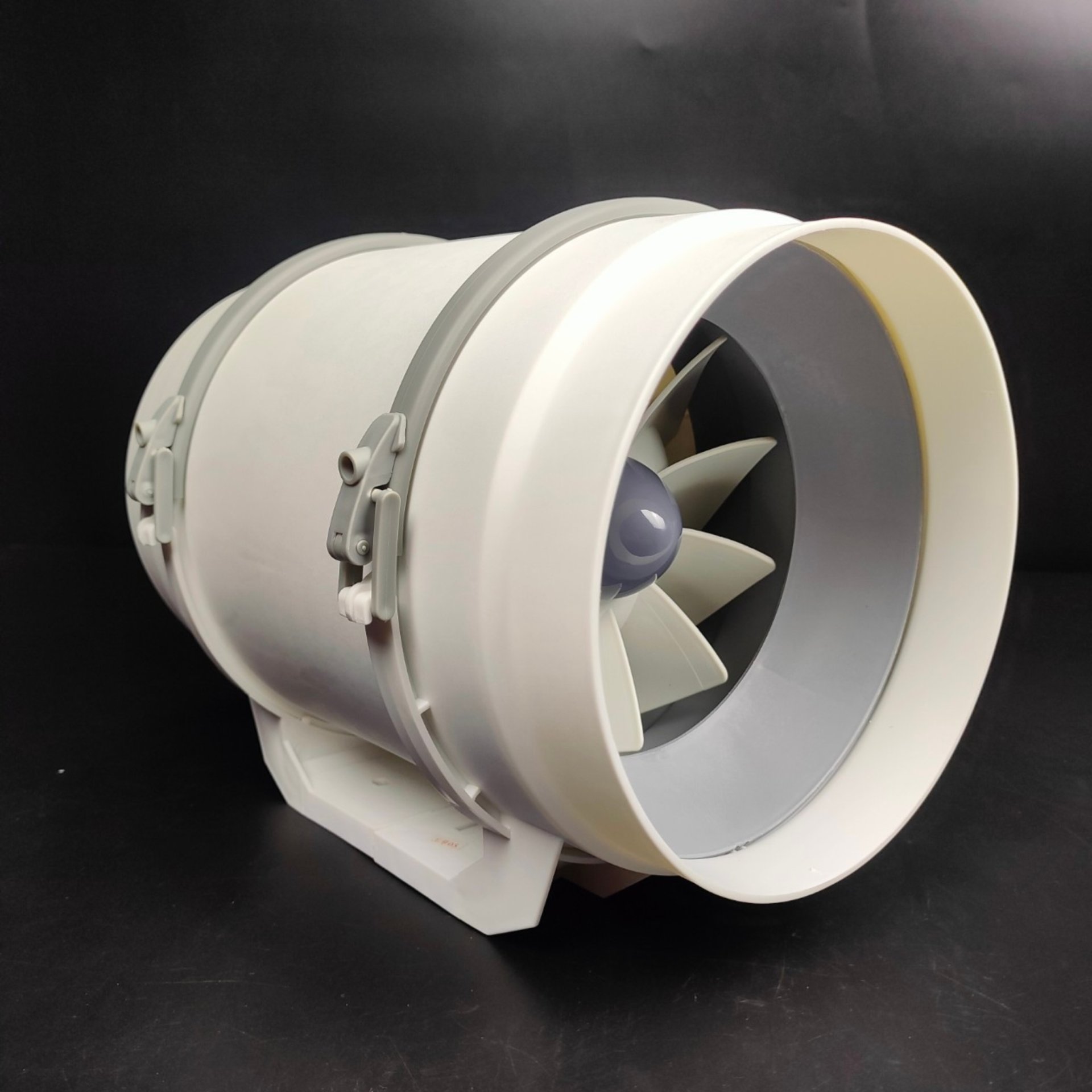

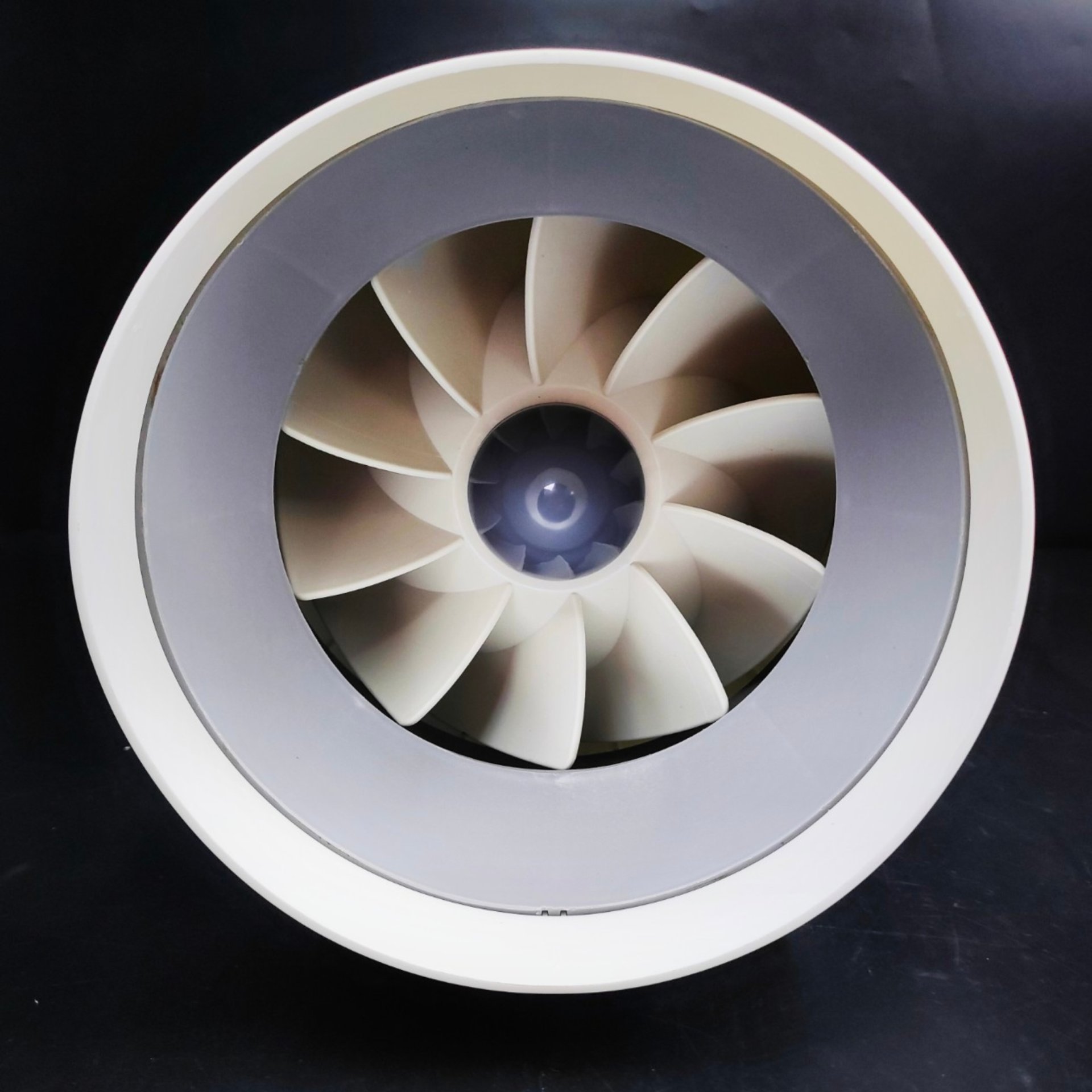

KC 200 MM 8 INCH : WHITE MIXED FLOW INLINE FAN
Mixed flow inline duct fan, with low noise, high air volume and high static pressure,
have the advantage of being more suitable for most ventilation appleictions than axial and

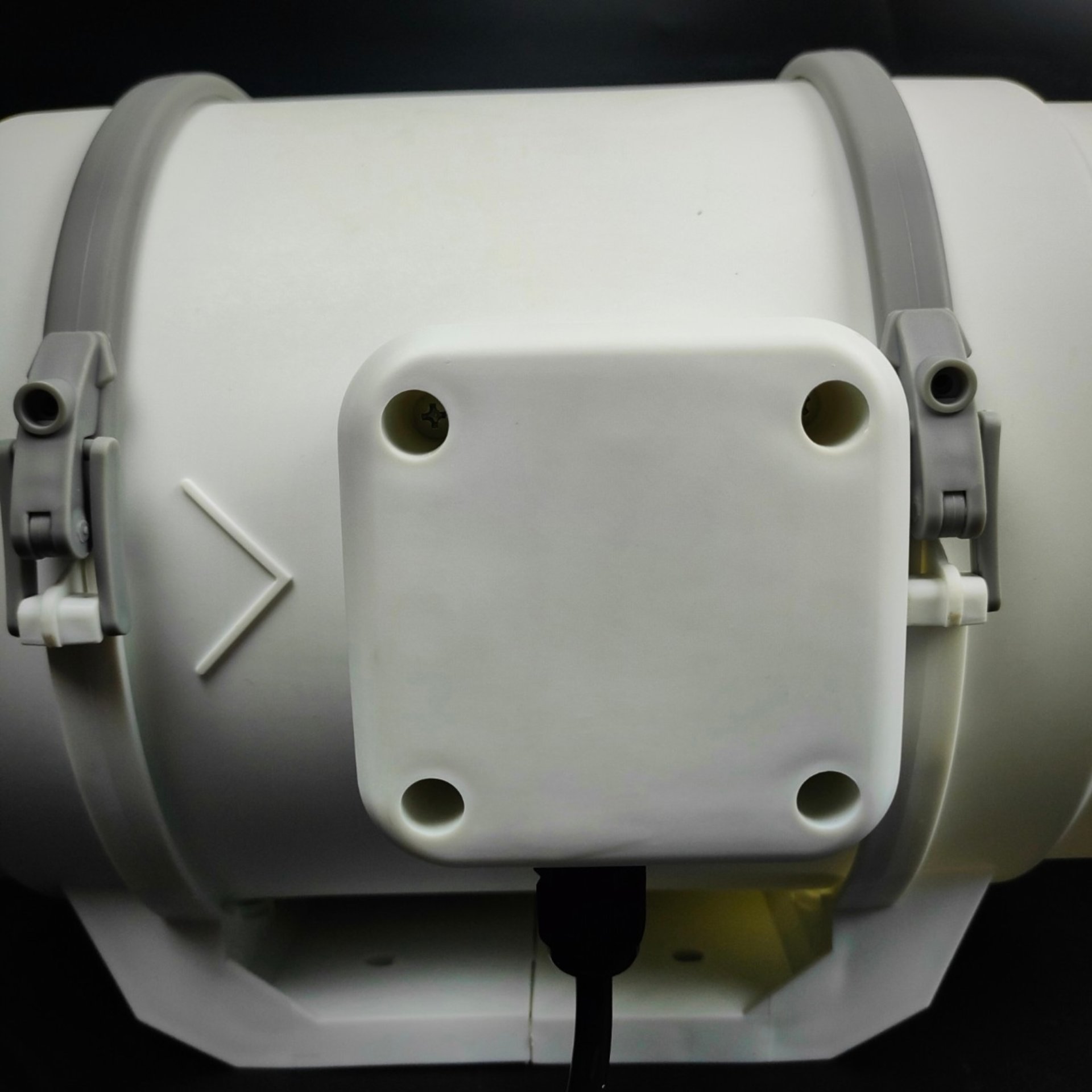

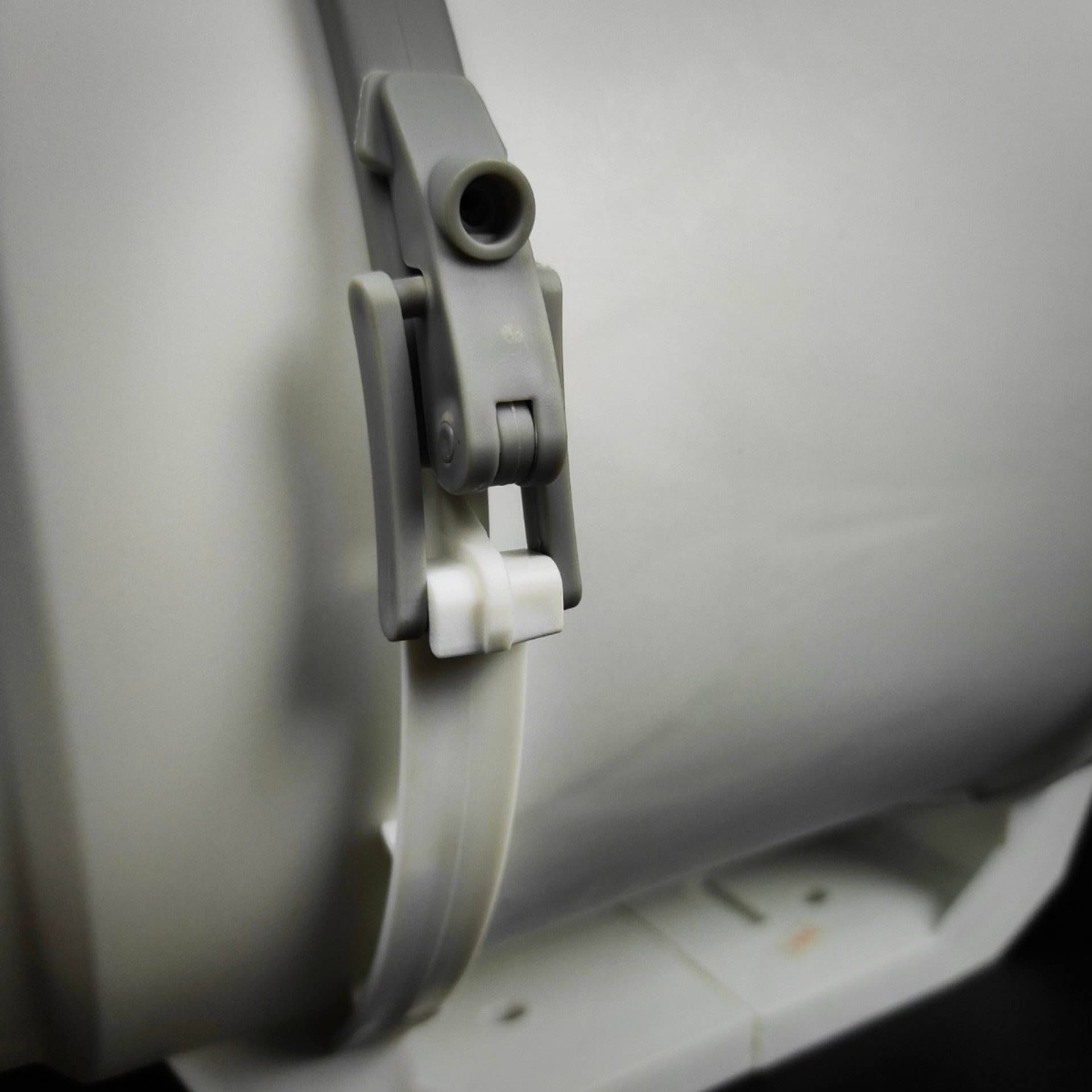

centrifugal fans. In terms of design, the motor of the fan unit is easy to install, remove and
clean. The motor and fan blade can be disassembled without removing the entire fan
product or the duct, and the connection is convenient, which can be used for the
maintenance of the closed space. In terms of installation,it can be installed at any end of
the pipe and at any angle, and the fans can be installed in parallel to increase the air
volume or in series to increase the pressure. It is widely used in hotels, department
stores, entertain-ment okaces abd residential buildings for ventilation.

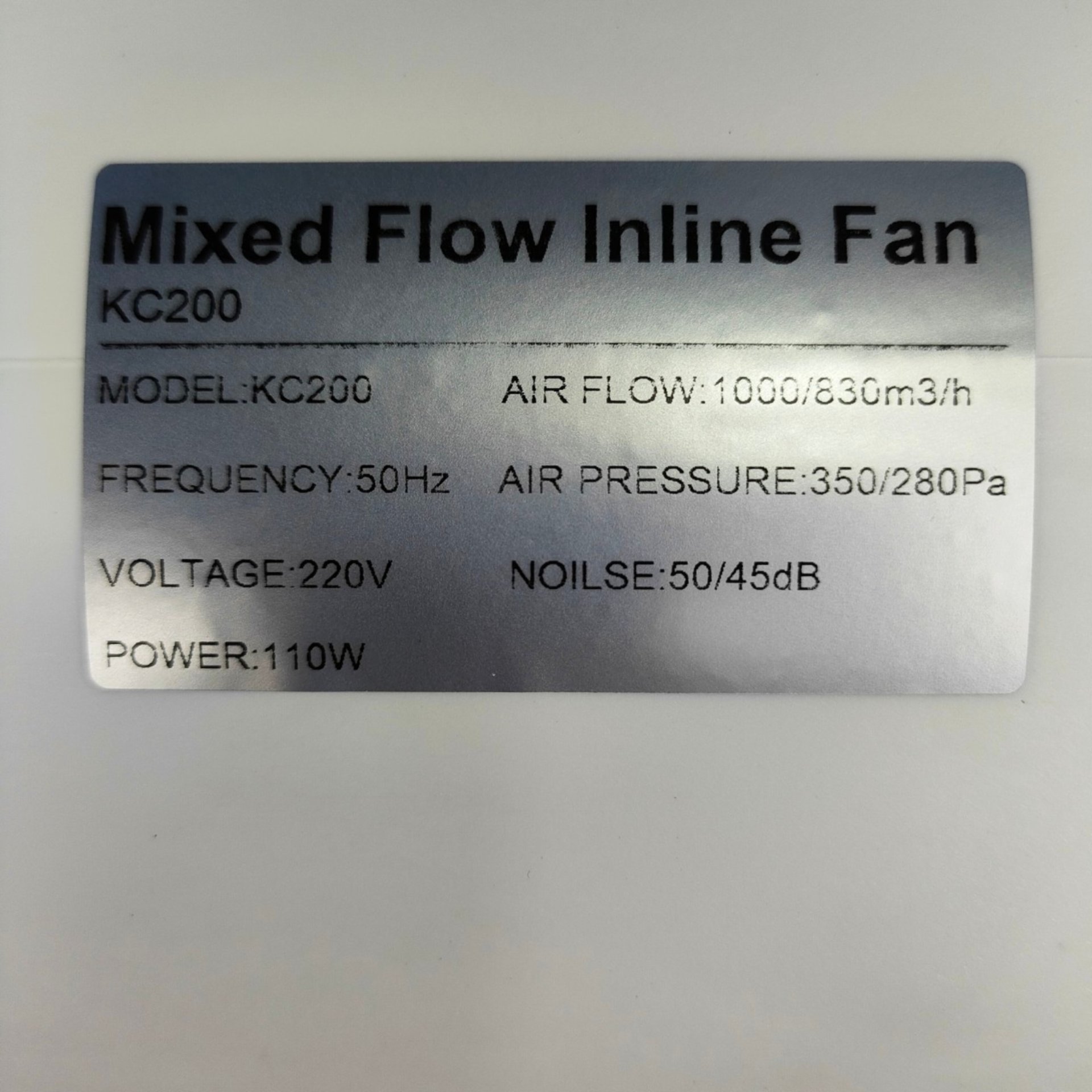

Product analysis
Weight : 3.1 kg
Size : 8 Inch (200mm)
Voltage : 220V
Power : 110 W
Airflowe : 1000/830m3/h
Frequency : 50Hz
Airpressure : 350/280Pa
Noise : 50/45db
